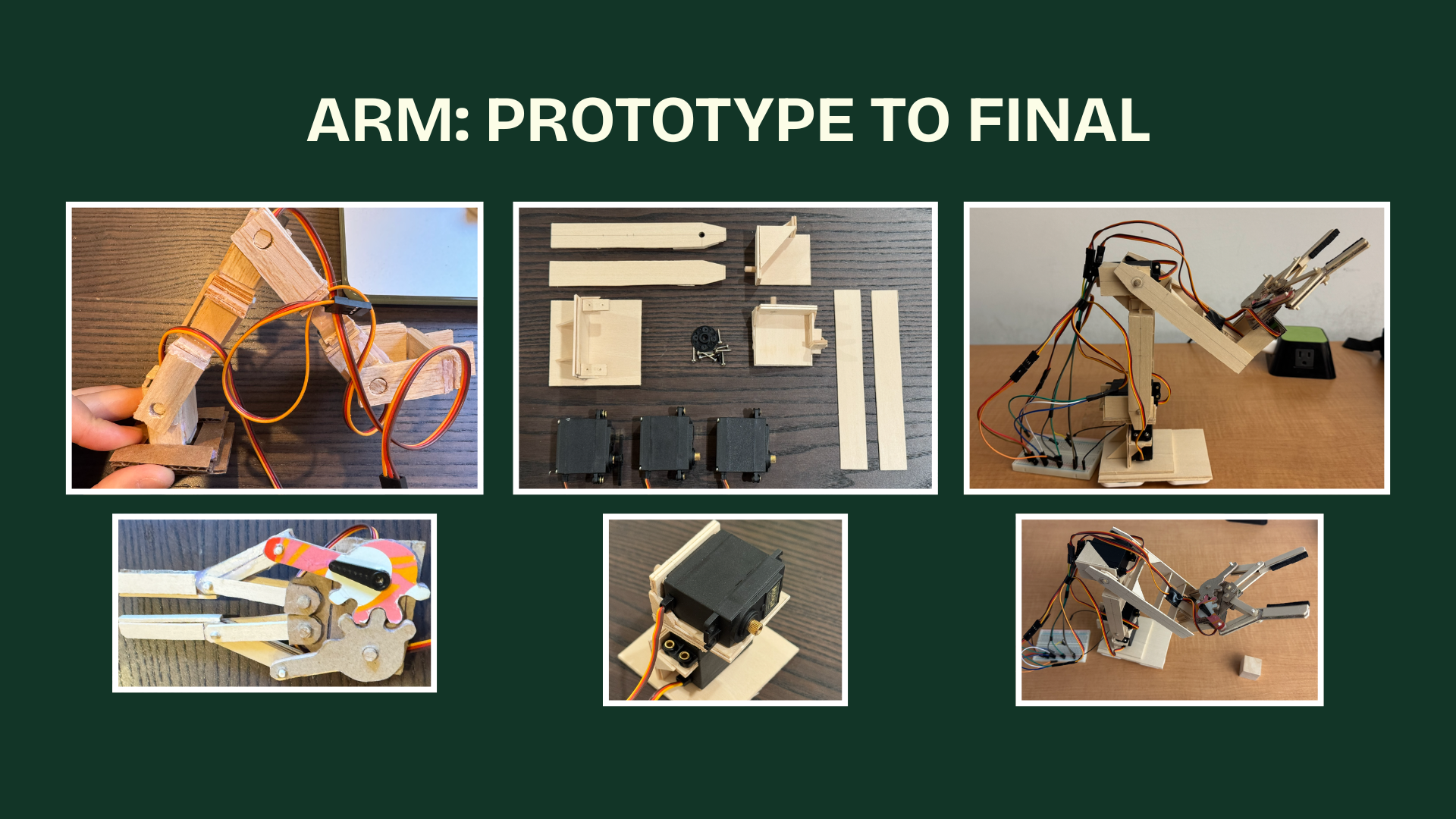

arm protoype to final

Gripper Demo Video:
Gripper Demo

Components Used

  • Mobile Base: TurtleBot platform equipped with a Raspberry Pi.
  • Perception: RealSense Camera for depth and ArUco marker detection.
  • The Arm: A custom 4-DOF robotic arm.
  • Servos: Four MG995 high-torque revolute servos for the base, shoulder, and elbow joints, plus one micro-servo for the gripper.
  • Materials: Basswood links for arm structure and foam padding on the gripper to prevent slippage.
  • Electronics:
    • Arduino: Used to control the five servos.
  • Battery Pack: Dedicated power supply for the high-torque servos.
  • Containers: An onboard basket (paper cup) for storing retrieved cubes.

Prototype Parts

  • Prototype: Cardboard, Basswood
  • Gripper design modified from:
    https://www.instructables.com/
    Robotic-Gripper-1

Software Implementation

ros1 ros2

Our software stack is built on ROS2 coordinating perception, navigation, and control.

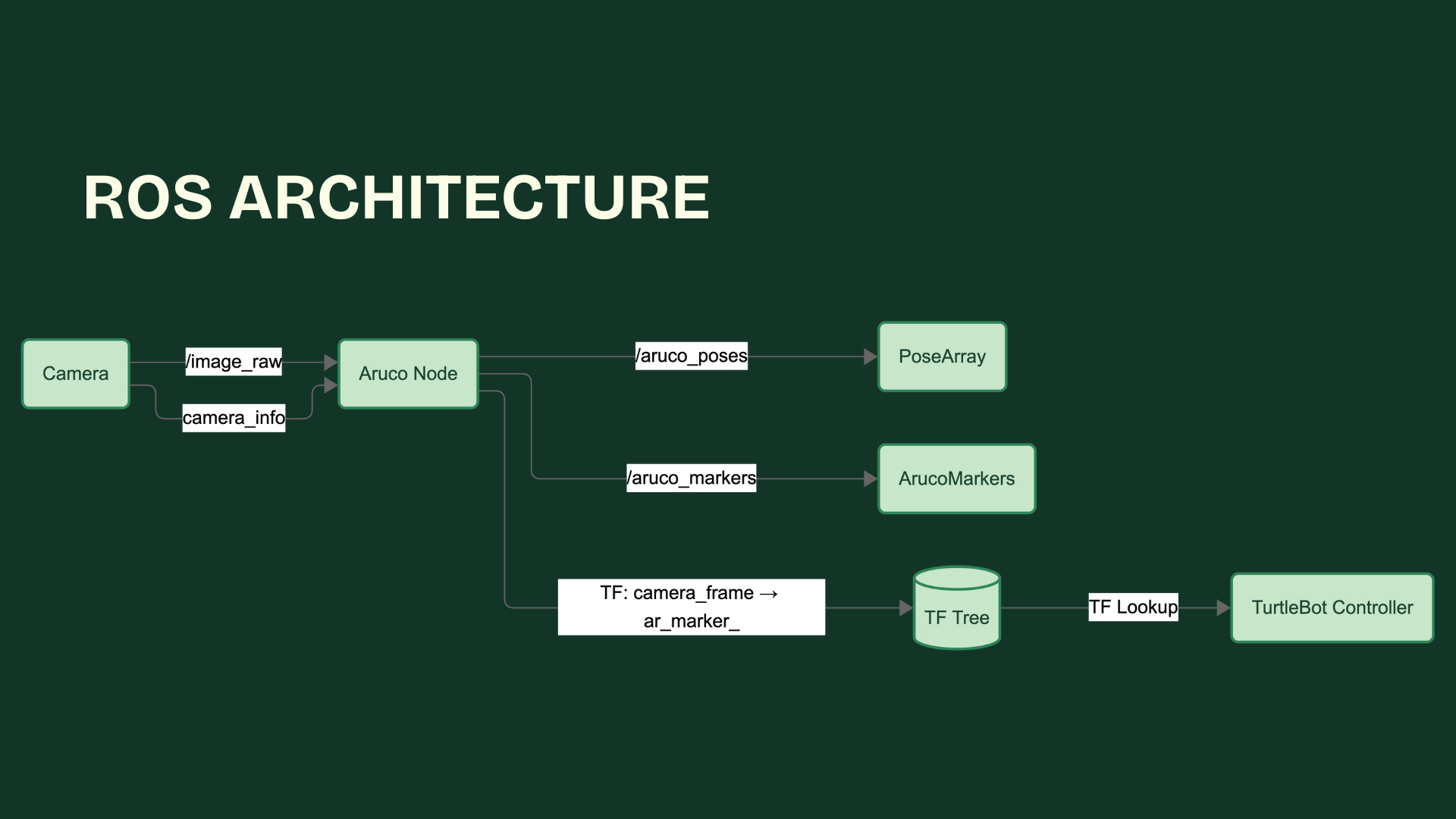

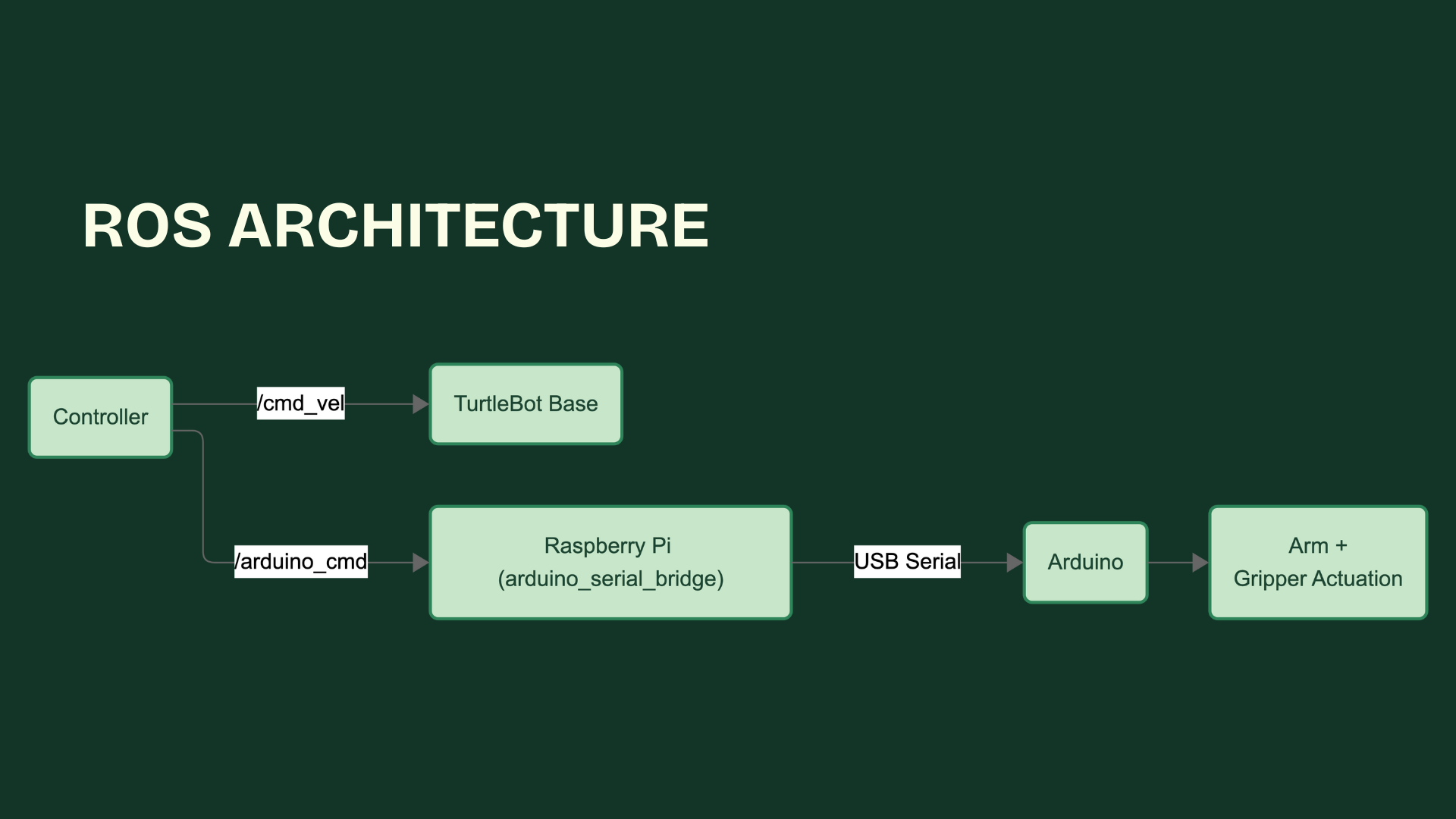

1. ROS Architecture

High-level control is managed by a central TurtleBot Controller node that interfaces with several sub-systems:

  • Vision Node: Processes image_raw and camera_info from the RealSense camera using the Aruco Node to output a PoseArray and ArucoMarkers.
  • TF Tree: Dynamically calculates the transform from the camera_frame to the ar_marker_.
  • Serial Bridge: A dedicated arduino_serial_bridge running on the Raspberry Pi sends movement commands via USB Serial to the Arduino.

2. Motion Planning & Control

  • Navigation: The controller uses TF Lookups to compute the distance to the target ArUco tag. It publishes to the /cmd_vel topic to drive the TurtleBot until the “stop distance” is reached.
  • Arm Sequences: The arm operates via pre-defined sequences triggered manually by wired connection from laptop to arduino.

Complete System

The system follows a sequential state machine to complete a Search and Retrieve mission:

  1. Target Detection: The robot identifies an ArUco Tag place next to a cube.
  2. Approach: The controller computes the transform to the tag and navigates the TurtleBot to the precise stop distance.
  3. Grasping Sequence:
    • The arm moves to a start pose.
    • The gripper opens to 140° and then closes to 180° to secure the block.
    • The arm lifts the block
  4. Deposit: The base or arm rotates to align with the onboard cup and the gripper releases the block.
  5. Return/Next Task: The robot either returns to the start location or computes the distance to a second tag for a follow-up courier task.
